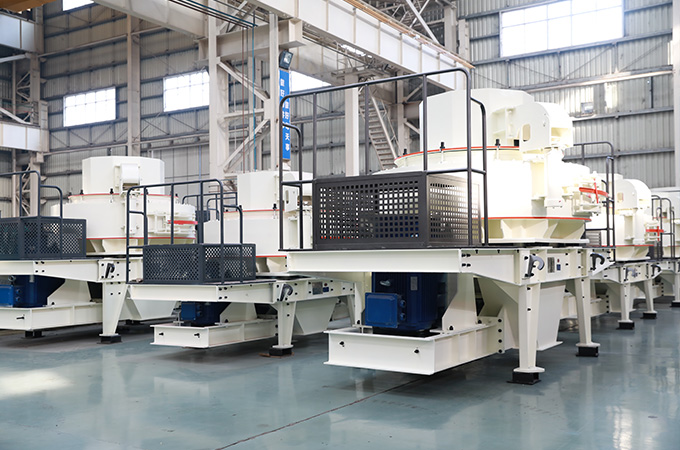

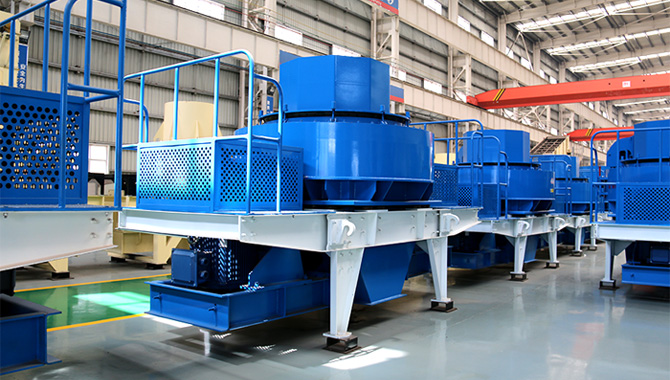

Sand Making Machine

Online Service < 60s Email Reply Time < 24h

Processing capacity: 10-450t/h

Feeding size: ≤50mm

Applied material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc.

Emailinfo@sinoftm.com

Sand Making Machine Working Video

The Handling Materials and Application of Sand Making Machine:

Sand making machine is used in crushing and reshaping process of the medium hardness and extra hardness materials. In the engineering field, sand maker is the ideal production equipment of the mechanism sand, cushion material, asphalt concrete, and cement concrete aggregate. Suitable to more than 1000 materials, such as pebble, andesite, silica sand, limestone, quartz, basalt, calcite, concrete, iron ore, granite and river stone, etc. Output sand size is adjustable within 0-5mm, 5-10mm, 0-3mm, 0.5mm, etc.

As a new type of sand making machine, VSI sand crusher has 50% energy conservation than the traditional sand maker. The VSI sand making machine can make all kinds of rocks gravels and cobbles into construction sand with uniform particle size and high withstand voltage degree. Sands produced by the new type of sand making machine improve the construction quality and conform to the requirements of the building far more than natural sand and that produced by hammer type sanding machine and.

Sand Making Machine Processing Material

Advantages of the VSI Sand Crusher

1.High handling capacity and production capacity

10-500 ton per hour for your choice. There is 30% production improvement of the VSI sand crusher.

2.Low abrasion wear

The perfect crushing and impact angle, the proper material impact velocity design and the wear-resistant parts decrease the using costs and improve the benefits rates of this VSI sand crusher.

3.Perfect finished product granularity

The six-side multi polygon size and reasonable grading make it suitable to mechanism sand and stone plastic. The comprehensive efficiency is improved by 30% according to the customers using guarantee and the comparison with same power machines.

Sand Making Machine Price

Manufacturer features, equipment properties, equipment materials, equipment models and play important roles in the sand maker price.

We can customized sand making machine accoding to your mineral size, capacity and budget cost, which will save your costs and maximize your benefits. You are welcome to inquire by chatting with online service or leave your whatsapp/ email on our website. We will contact you within 24hours after receiving your inquiry.

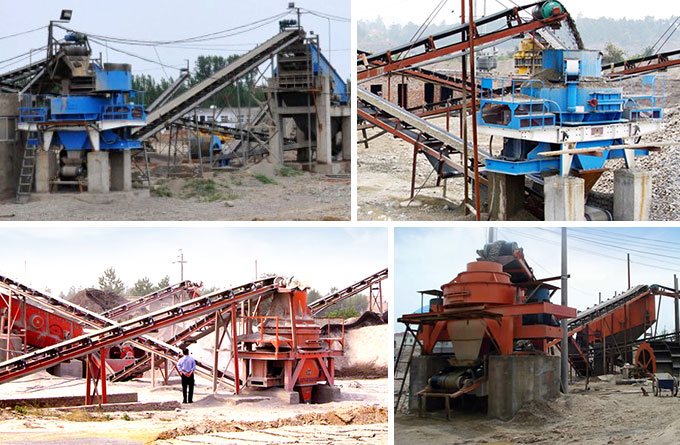

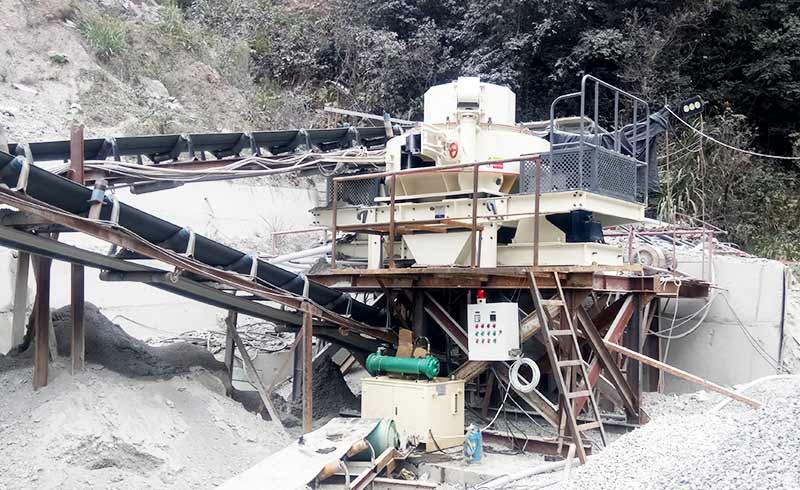

Sand Making Machine Production Site

Model Sand Shaping Sand Making Motor Power (kw)
Max.Feeding Size (mm)
HVI 0815 50-140  90-230  2×75
HVI 0818 60-190 110-283 2×90
HVI 0922 70-210 150-330 2×110
HVI 0926 85-240 170-380 2×132
HVI 1032 130-278 180-400 2×160
HVI 1040 180-284 250-440 2×200
HVI 1263 320-498 370-585 2×315
Model Capacity(t/h)
Feed both at center and sides Feed at center
VSI 7611 80-180 40-90
VSI 8518 140-260 70-130
VSI 9526 200-380 100-190
VSI 1140 300-520 160-260
VSI 1145 350-610 180-355
VSI 1150 360-650 190-365

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model
specification
Capacity
(t/h)
FTM-06 10-30
FTM-07 20-55
